Supply description:

• • Support structures

  • Shaft kiln I, II, III, IV,V

  • Loading/unloading hoppers

  • Lances in steel Aisi310S

  • Fumes Valves

  • Fumes ducts in Aisi316L

  • Air & Gas tubes lines

  • Platforms, walls and roofs

Working performed:

• • Manufacturing metal carpentry

  • Surface Treatments

  • Transport & Erection

Steel quality:

• • S275JR: 1.0044 EN 10025-2:2004
  • P355GH: 1.0473 EN 10028-2:2004
  • AISI 316L: 1.4404 EN 10088-3:2005
  • AISI 310S: 1.4845 EN 10095:1999

Supply description:

• • N°10 DRJC Section Casings

  • N°13 OA Section Casings

  • N°03 HB Section Casings

  • Electrical heating supports

  • Bottom and top covers

  • Sliding doors

  • Jet cooler
  • Bungs

Working performed:

• • Manufacturing metal carpentry

  • Surface Treatments

  • Transport & Erection

Steel quality:

• • S235JR : 1.0038 EN 10025-2:2004
  • AISI 304: 1.4301 EN 10088-3:2005
  • AISI 316L: 1.4404 EN 10088-3:2005
  • AISI 310S: 1.4845 EN 10095:1999

Supply description:

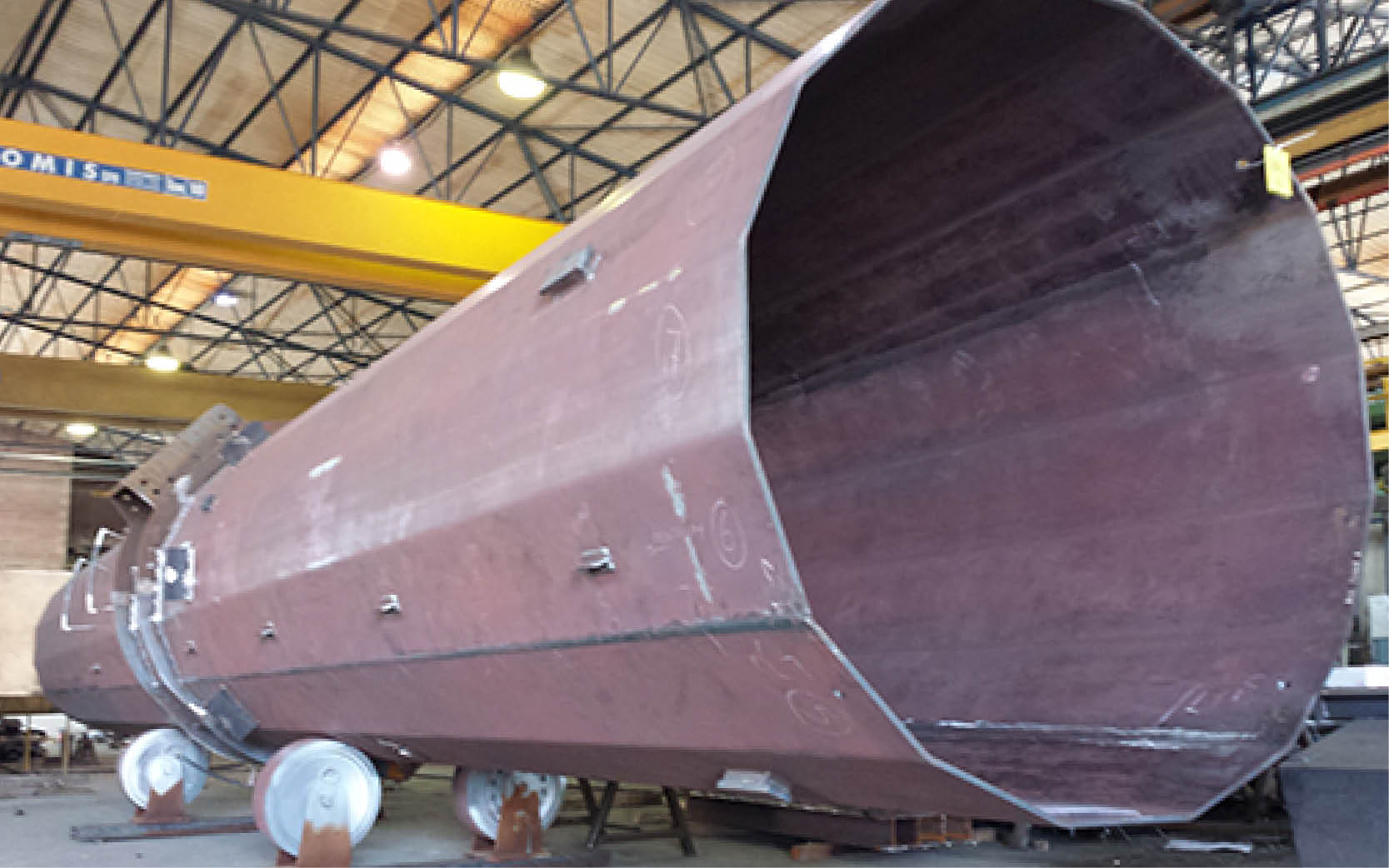

• • N°3Pz.x89,62 Ton; H: 52.000;
    Base Diameter and Thk. base:3600×26
  • N°4Pz.x39,12 Ton; H: 55.000;
    Base Diameter and Thk.:3000×20
  • N°1Pz.x 73,38 Ton; H: 55.000;
    Base Diameter and Thk.:3600×24
  • N°6Pz.x 18,97 Ton; H: 54.000;
    Base Diameter and Thk.:2600×18

Working performed:

• • Manufacturing metal carpentry

  • Radiographic Testing of Welds

  • Packing & Transport

Steel quality:

• • S275JR: 1.0044 EN 10025-2:2004
  • S355JR: 1.0045 EN 10025-2:2004
  • S460N: 1.8901 EN 10025-3:2004

Supply description:

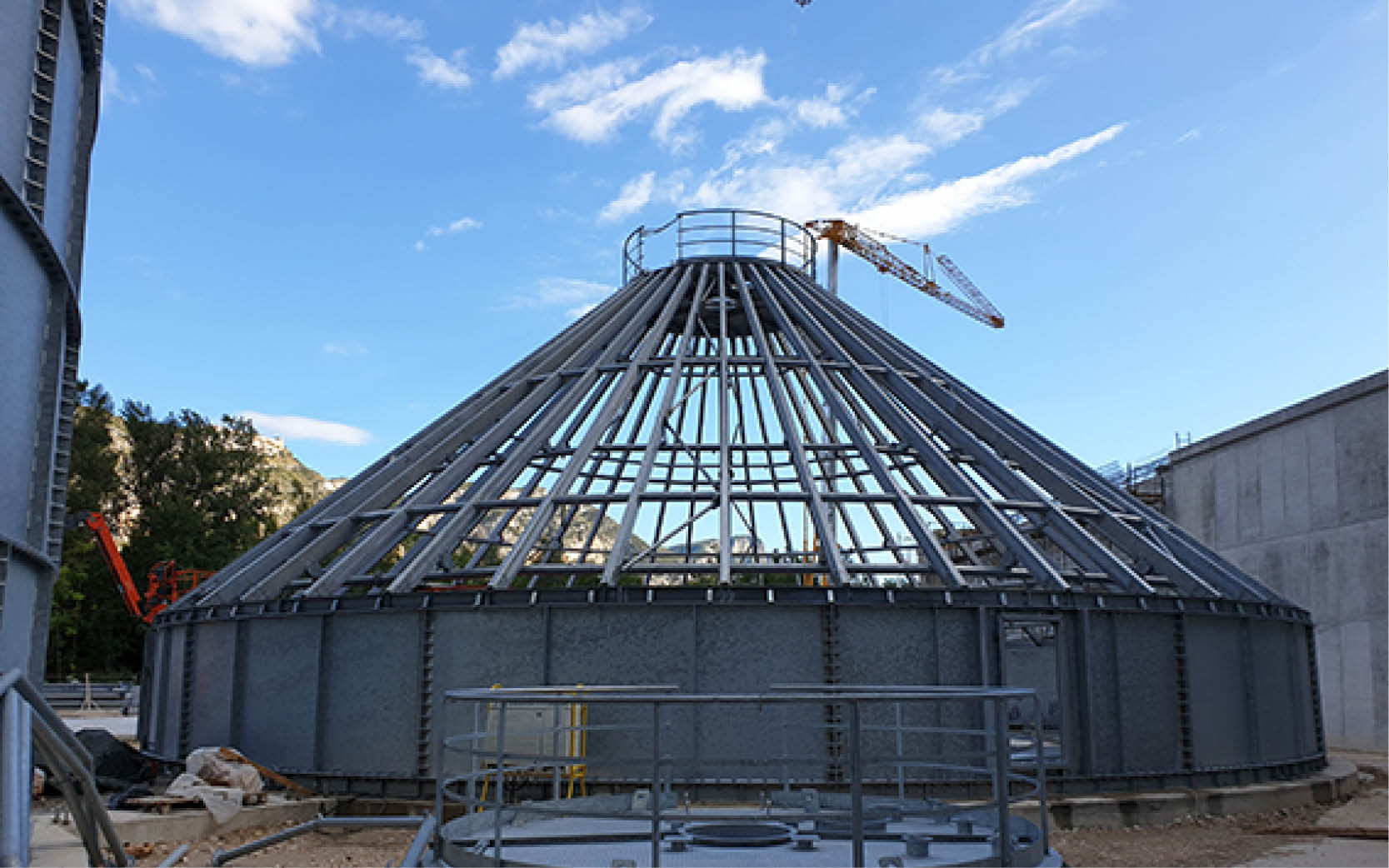

Dimensions: diameter: 22.000, height: 36.000
Silos consisting of calendered sheet metal shell joined by bolted flanges.
Roof made of radial tubes prepared for PVC coating.
Doors and access gate
Fire-fighting system piping
Silo roof access ladder

Working performed:

• • Manufacturing metal carpentry

  • Surface Treatments

  • Transport & Erection

Steel quality:

• S275JR: 1.0044 EN 10025-2:2004
• S355JR: 1.0045 EN 10025-2:2004

Supply description:

• • 1st crane: Electro-welded box beams
    Section: 1.050×1.500 mm
    Light: 27.850 mm

  • 2nd crane: Electro-welded box beams
    Section: 1.050×1.850 mm
    Light: 33.650 mm

Working performed:

• • Manufacturing metal carpentry

  • Surface Treatments

  • Packing & Transport

Steel quality:

• • S355J2: 1.0577 EN 10025-2:2004

Our company has the Welding Process Qualifications (WPQR) to weld the main types of stainless steel and is able to build a wide range of components using the qualities listed below:

• • EN10088              1.4301-AISI 304               X5CrNi18-10
  • EN10088              1.4307-AISI 304L             X5CrNi18-9
  • EN10088              1.4401-AISI 316               X5CrNiMo17-12-2
  • EN10088              1.4404-AISI 316L             X2CrNiMo17-12-2
  • EN10088              1.4435-AISI 316L             X2CrNiMo18-14-3
  • EN10088              1.4571-AISI 316Ti            X6CrNiMoTi17-12-2
  • EN10088              1.4541-AISI 321               X6CrNiTi18-10
  • EN10088              1.4539-AISI 904l              X1NiCrMoCu20-25-5
  • EN10088              1.4006-AISI 410               X12Cr13
  • EN10088              1.4057-AISI 431               X17CrNi16-2
  • EN10095              1.4828-AISI 309               X15CrNiSi20-12
  • EN10095              1.4833-AISI 309S             X12CrNi23-12
  • EN10095              1.4835-253MA                X9CrNiSiNCe21-11-2
  • EN10095              1.4841-AISI 314               X15CrNiSi25-21
  • EN10095              1.4841-AISI 310               X15CrNiSi25-21
  • EN10095              1.4845-AISI 310S             X8CrNi25-21
